Setting up Licensing Division ID with SCIM

In This Article

Who can use this feature?
EnterpriseEnterprise+

Visit our pricing page for more information.

The Licensing Division ID feature allows Enterprise and Enterprise+ organizations to use SCIM provisioning to automatically assign users to divisions in Asana. When configured, your identity provider maps each user to a specific division using the licensingDivisionId attribute, which corresponds to the unique numeric ID of a division in your Asana organization.

For more information about creating and managing divisions, see Divisions in paid organizations.

Related articles

Before you begin

To use this feature, your organization must be on the Enterprise or Enterprise+ tier and have SCIM provisioning already configured with your identity provider. You will need the division IDs for each division in your Asana organization. These IDs are numeric strings visible in the Asana admin console and are used as the mapped values in your identity provider.

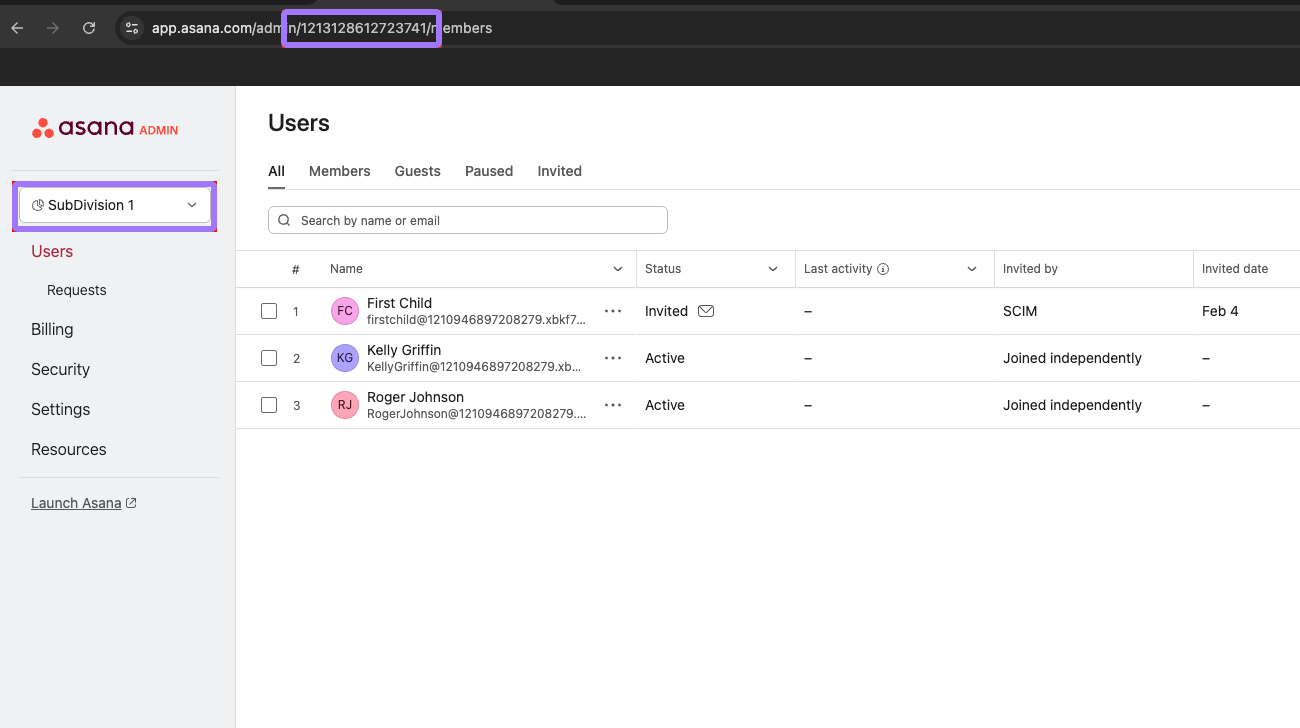

Find your division IDs

Before configuring your identity provider, collect the division IDs from the Asana admin console. Open the Admin console and select Divisions from the left navigation. For each division, note the numeric ID associated with it. These IDs are the values you will map to users in your identity provider to ensure correct division assignment upon provisioning.

Set up licensingDivisionId in Okta

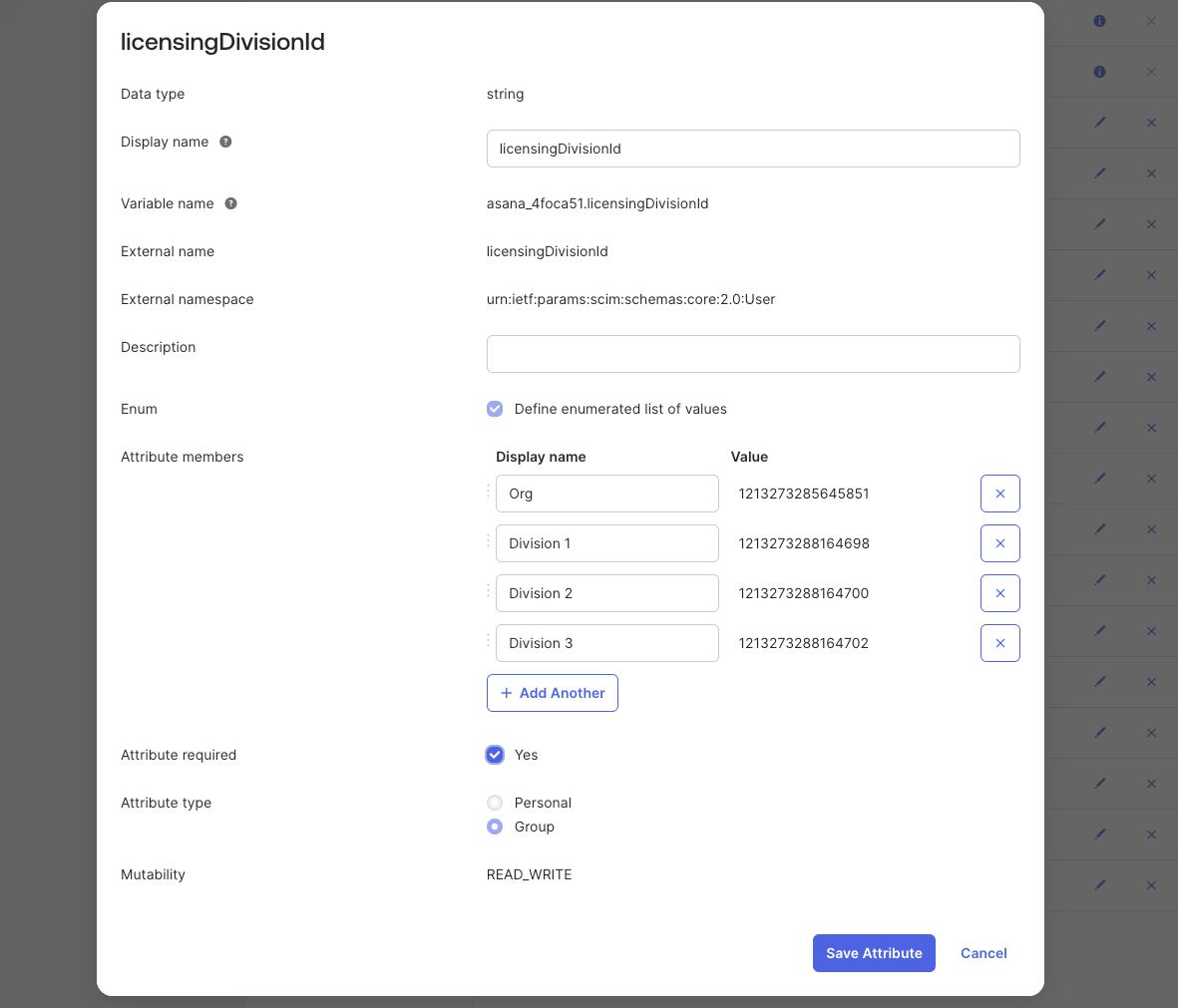

Add the attribute to your Okta profile

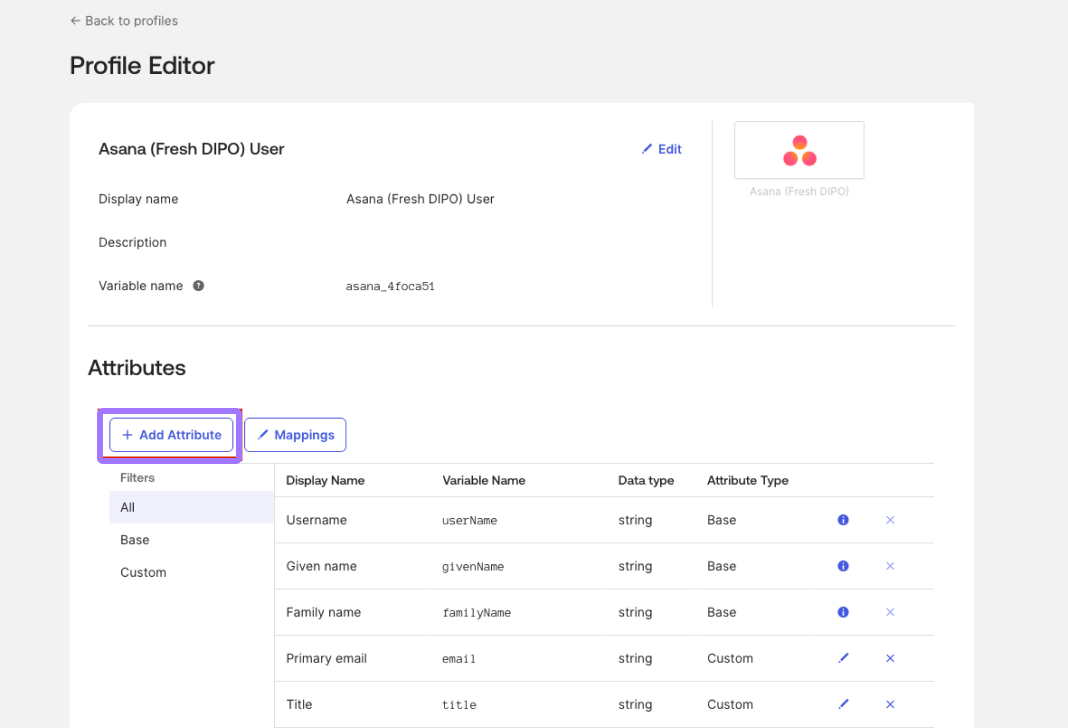

  • Open your Asana app in Okta and go to Profile Editor.
  • Click Add Attribute.

  • Set Data type to string.
  • Set Display name and External name to licensingDivisionId.
  • Set External namespace to urn:ietf:params:scim:schemas:core:2.0:User.
  • Turn on Enum and add one value for your organization and one value for each division ID.
  • Set Attribute required to Yes, Attribute type to Group, and Mutability to READ_WRITE.
  • Click Save Attribute.

Map the attribute to groups

  • In Profile Editor, open Mappings.
  • Find the licensingDivisionId row and map each Okta group to the correct division value.

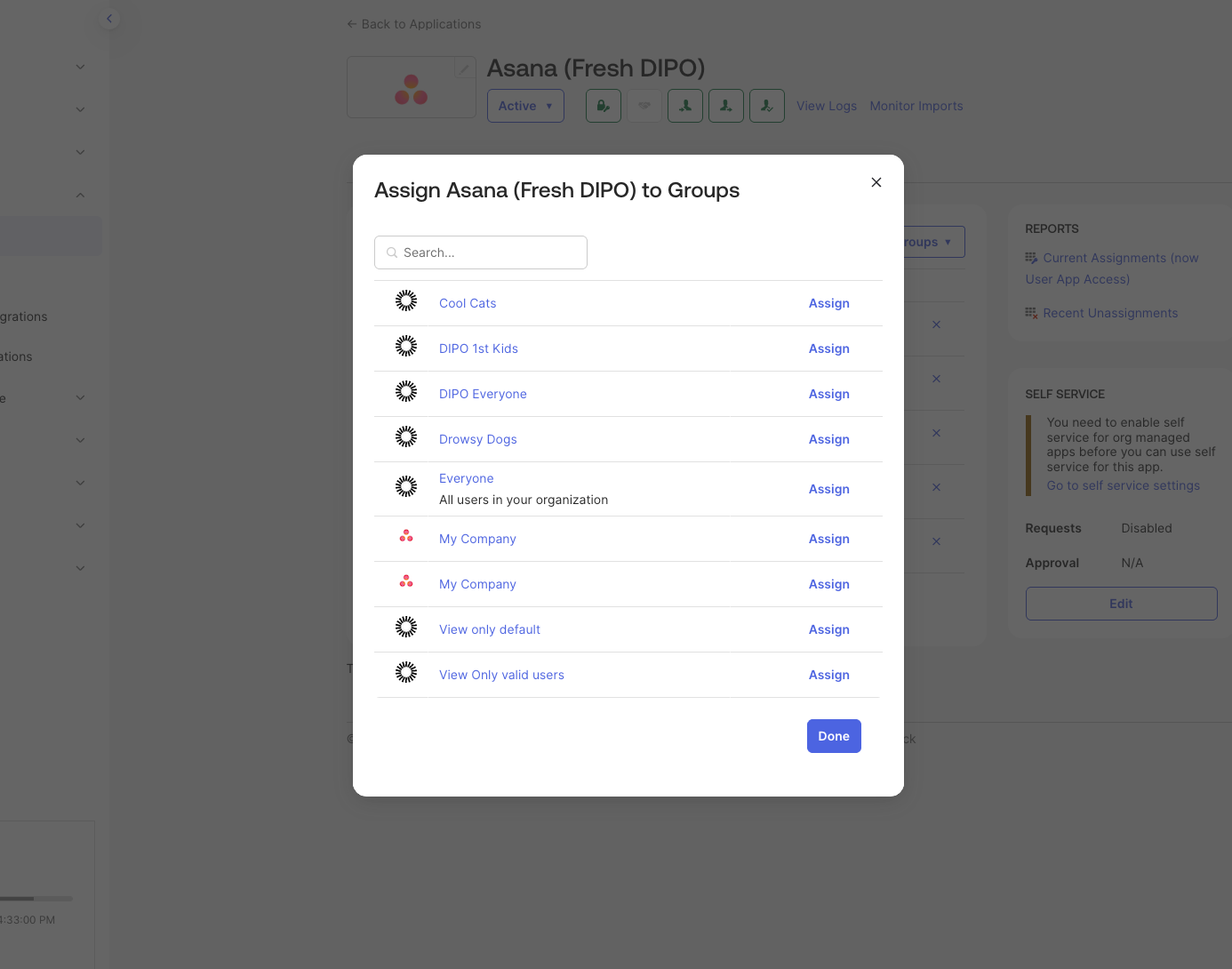

  • On the app page, click Assign to Groups.
  • Select each group, click Assign, and then click Done.

Set up licensingDivisionId in Microsoft Entra ID

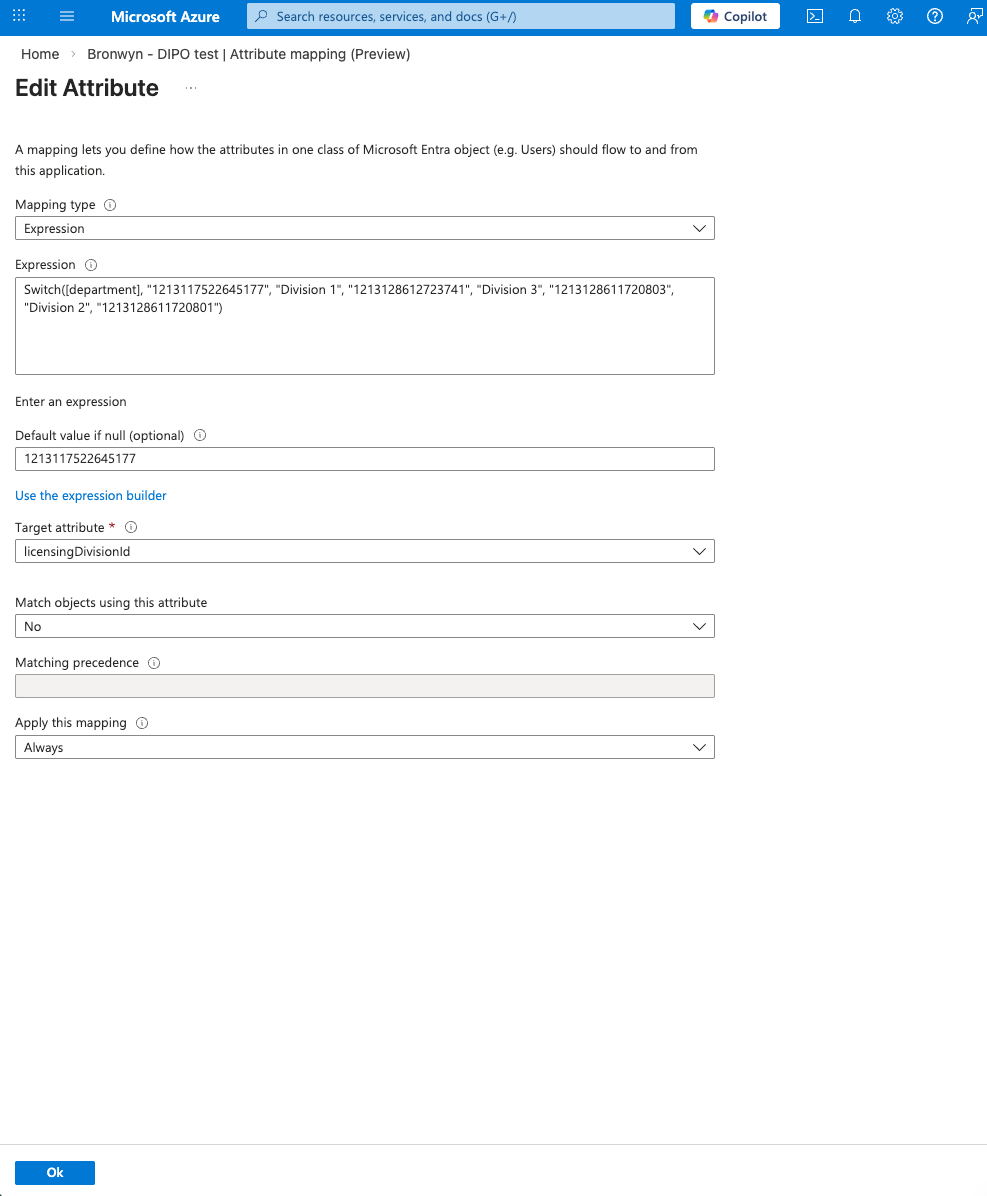

Configure the attribute mapping

  1. Open your Asana app in the Azure portal and go to Provisioning.
  2. Open Attribute Mapping (Preview).
  3. Find the licensingDivisionId target attribute and add or edit the mapping.
  4. Set Mapping type to Expression.
  5. Enter a Switch() expression that maps your source attribute, such as department, to the correct Asana division IDs. For example: Switch([department], "OrgID", "Division 1 name", "Division1ID", "Division 2 name", "Division2ID").
  6. Set Default value if null to your organization-level ID so that users without a matching value are assigned to the organization by default.
  7. Set Target attribute to licensingDivisionId.
  8. Set Match objects using this attribute to No and Apply this mapping to Always.
  9. Click Ok to save.

Verify the configuration

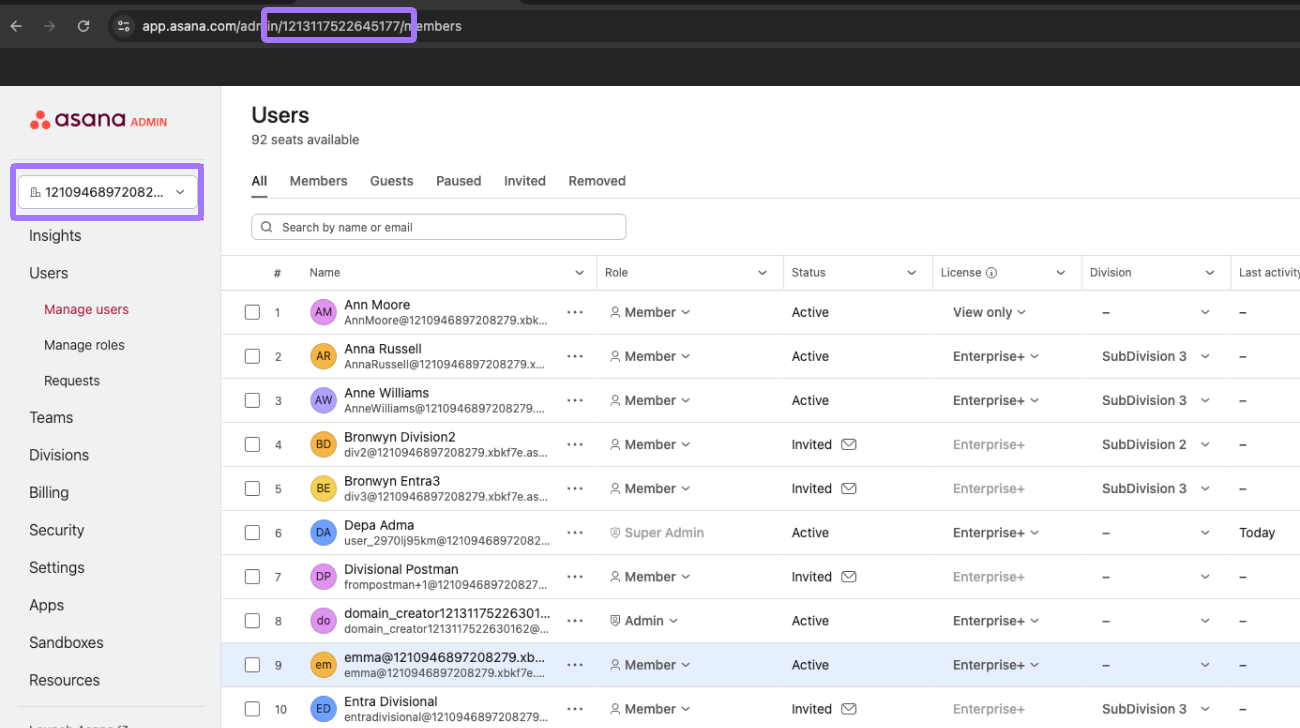

After completing the setup in your identity provider, trigger a SCIM sync or provision a test user to confirm that the licensingDivisionId value is being sent correctly. In the Asana admin console, open the Users section and check that provisioned users appear under the correct division in the Division column. If a user appears without a division assignment, review the attribute mapping in your identity provider to ensure the correct division ID is being passed.
