Setting up Asana roles in Microsoft Entra ID with SCIM

In This Article

Available to organizations on an Enterprise+ plan.

Note iconNote

Super Admin roles cannot be assigned through SCIM. To designate a super admin, use the Asana admin console after completing super admin verification. SCIM can assign admin, member, and guest roles only.

Before you begin

Set up the roles attribute and attribute mapping in Entra ID

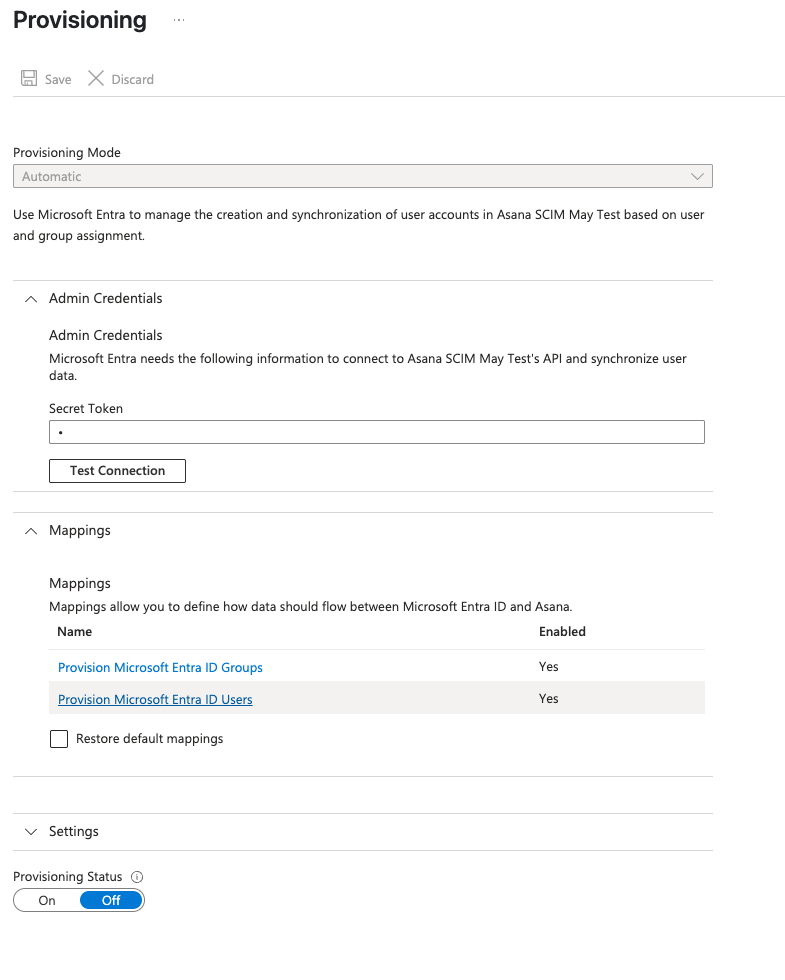

Once your Asana domain is connected, go to the Provisioning tab.

Expand Mappings, and under that, click Provision Microsoft Entra ID Users

Scroll to the bottom of the Attribute Mapping page, and check Show advanced options. This will display a few more options. Click Edit attribute list for Asana.

If this is not available to you, make sure that you have followed the step in Before you begin to open Microsoft Entra ID with the schema fully enabled.

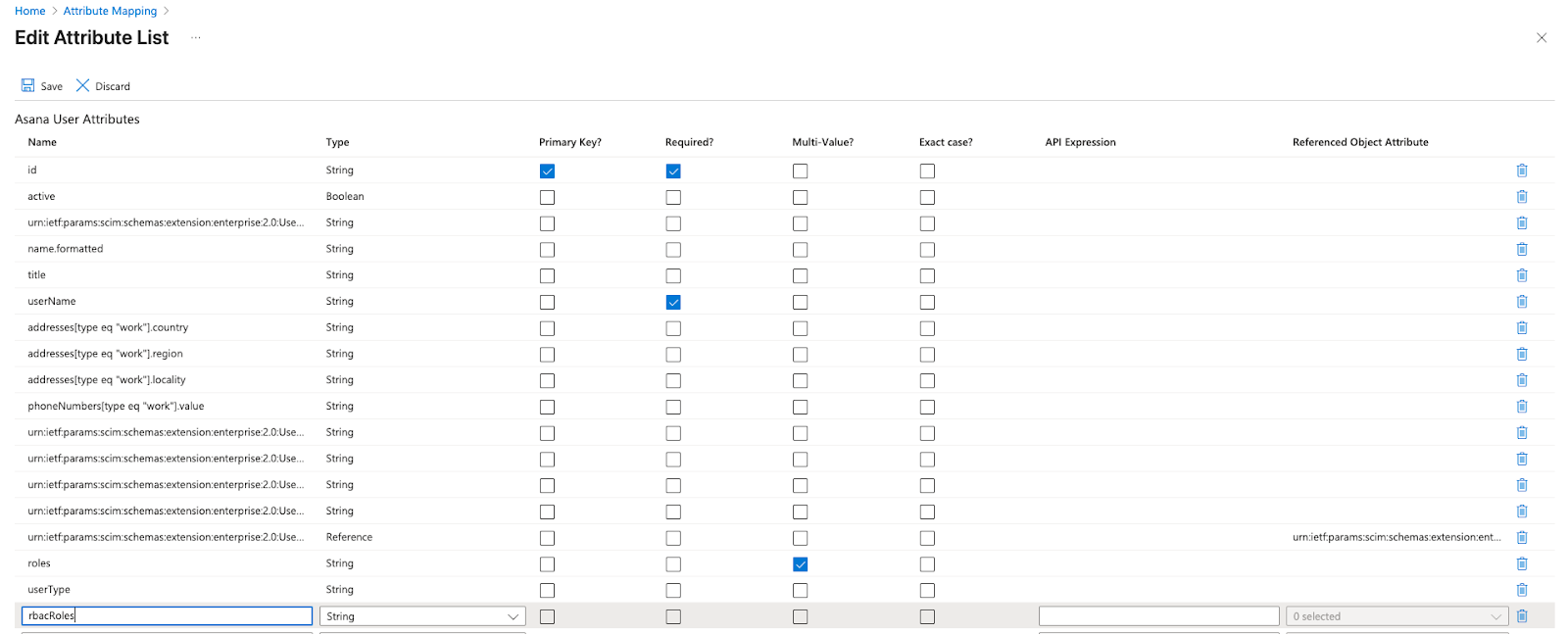

On the Edit Attribute List page, add a new user attribute called rbacRoles as a String type. Save the attribute list.

Back on the Attribute Mapping page, click, Add New Mapping.

Set the Mapping type to Expression

Set the Expression to

  • Join(",",
      IIF(Instr(Join("", AssertiveAppRoleAssignmentsComplex([appRoleAssignments])), "\"value\":\"admin\"", , )>"0", "1234567890", ""),
      IIF(Instr(Join("", AssertiveAppRoleAssignmentsComplex([appRoleAssignments])), "\"value\":\"custom_role\"", , )>"0", "1234567890", ""),
      IIF(Instr(Join("", AssertiveAppRoleAssignmentsComplex([appRoleAssignments])), "\"value\":\"member\"", , )>"0", "1234567890", "")
    )

In this expression, you are setting up the role name and grabbing the corresponding custom role ID from Asana to replace the set of numbers. The role IDs must be parametrized - the IDs (the numbers) are placeholder for demonstration and must be replaced by your own Asana custom IDs.

  • Important - the role name cannot have a space - use an underscore in its place.

Important - the order of the role in the expression will determine the priority of role assignment. Roles at the top will have higher priority. Later, if a user is in multiple role groups, they will get the highest priority role as defined here.

  • Based on this example, if an user is in both a member and admin role group in Entra ID, they will receive the admin role in Asana.

Skip the Default value field

Set Target attribute to rbacRoles, which is what we just created

Set Match objects using this attribute to No

Set Apply this mapping to Always

To get the custom IDs from Asana

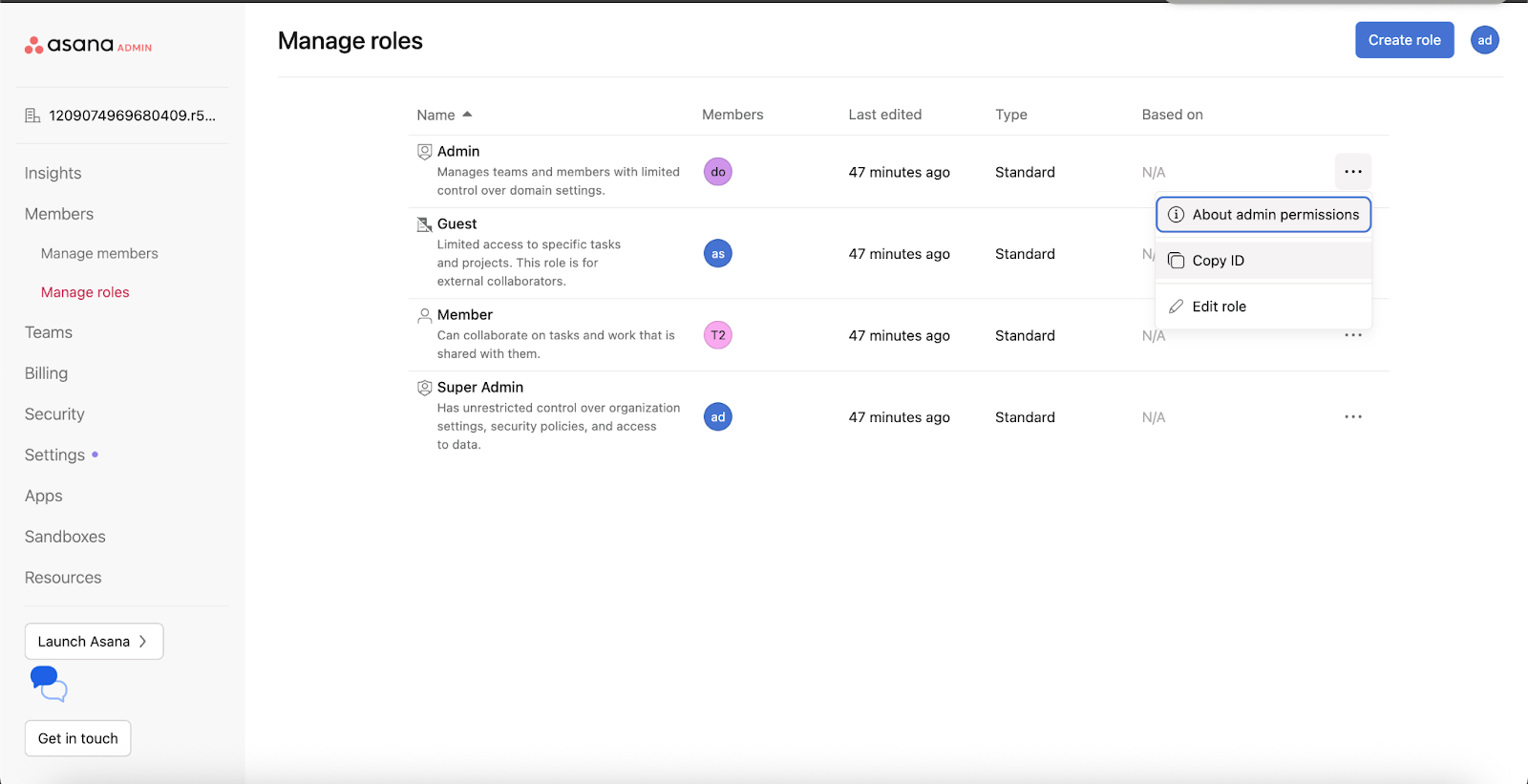

Navigate to the Manage roles page, click on the drop down to the right of each role, and click copy custom ID. Repeat this process for each standard role you plan to assign with SCIM, such as Asana member, admin, or guest, and for any custom role you have created. Super Admin roles are assigned only in the Asana admin console, not through SCIM.

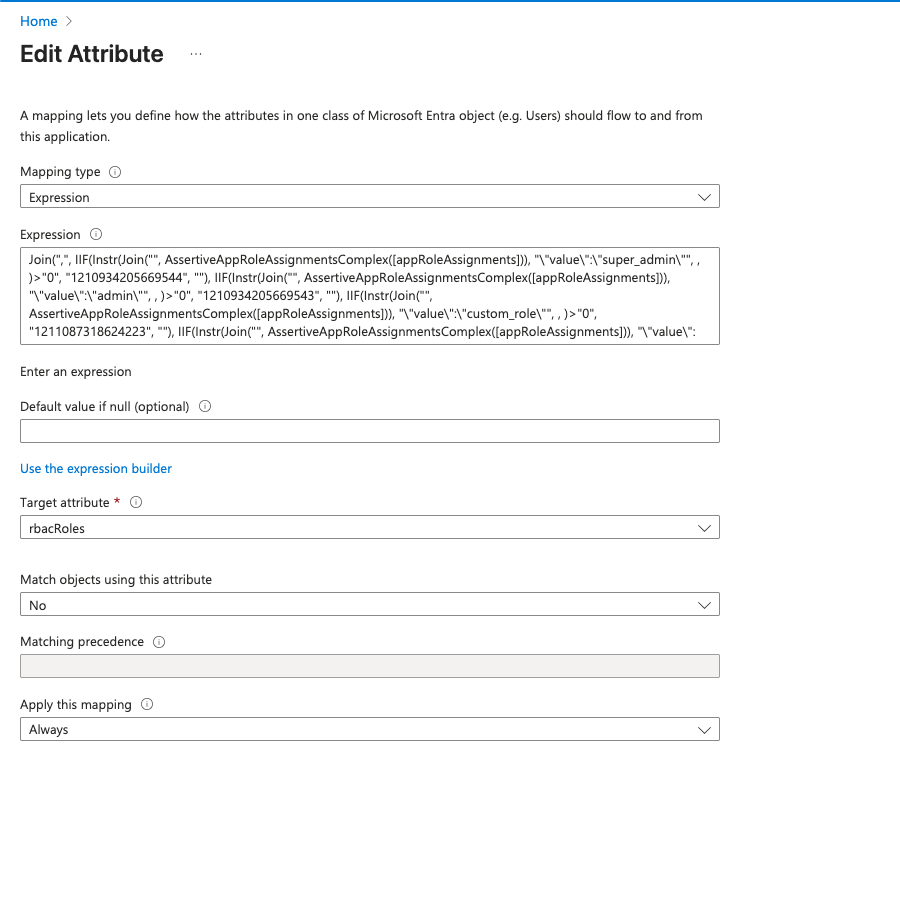

The result should look like this:

Click OK, and Save.

Set up app roles

Go to Users and groups under Manage in the left navigation pane. Click on application registration on this screen.

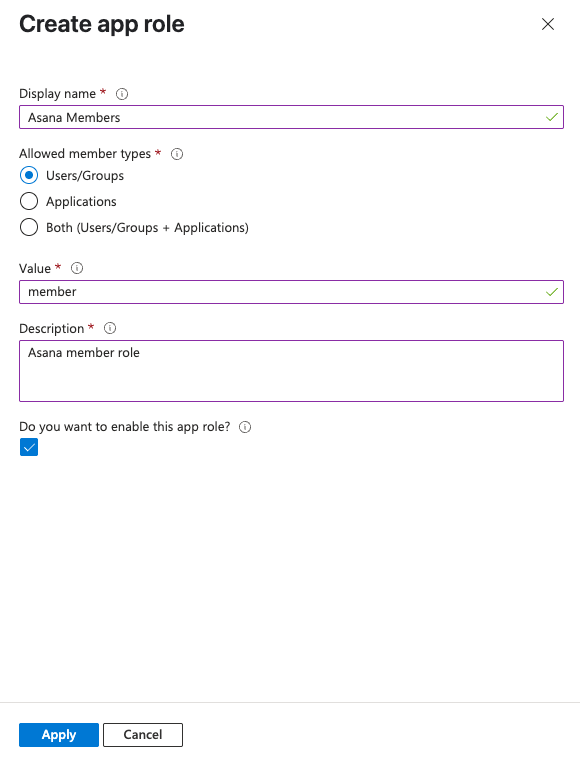

We’ll create app roles that match the roles you have set up. Click Create app role.

Note iconNote

Values set in each app role created here must match the naming in the Expression set above. The value cannot have a space. Use an underscore in the place of a space.

Standard Asana roles

Member

  • Display name: Asana Members
  • Allowed member types: Users/Groups
  • Value: member
  • Description: Asana member role
  • Make sure Enable this app role is checked

Admin

  • Display name: Asana Admin
  • Allowed member types: Users/Groups
  • Value: admin
  • Description: Asana admin role
  • Make sure Enable this app role is checked

Custom roles: create more custom app roles to match all the custom roles you have set up

  • Display name: Asana <custom role>
  • Allowed member types: Users/Groups
  • Value: custom_role_1
  • Description: Asana custom role #1
  • Make sure Enable this app role is checked

Click Apply to save the app roles.

Add all other roles from your domain.

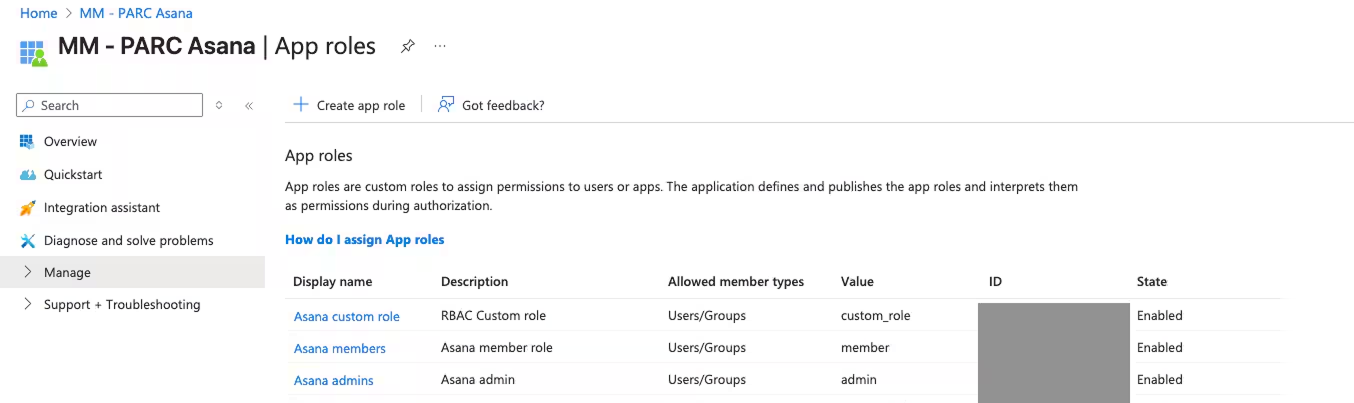

The result will look like this:

Create an Entra group for each Asana role and assign the role to the group

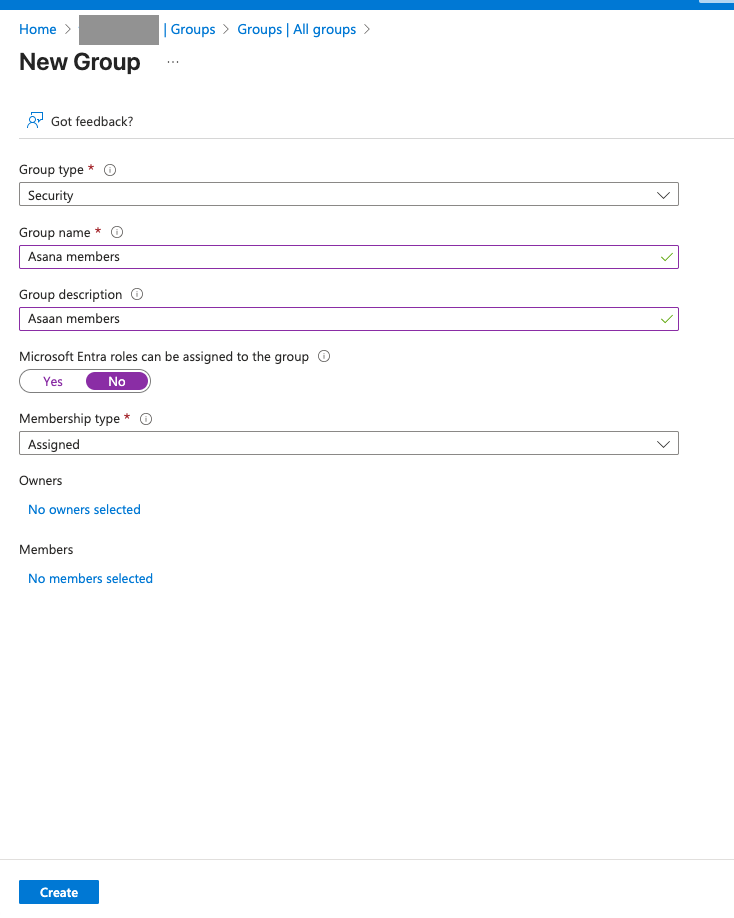

Now, create an Entra group for each Asana role

Now we’ll assign the role to the group. Go to Enterprise application > Asana application > Manage > User and groups:

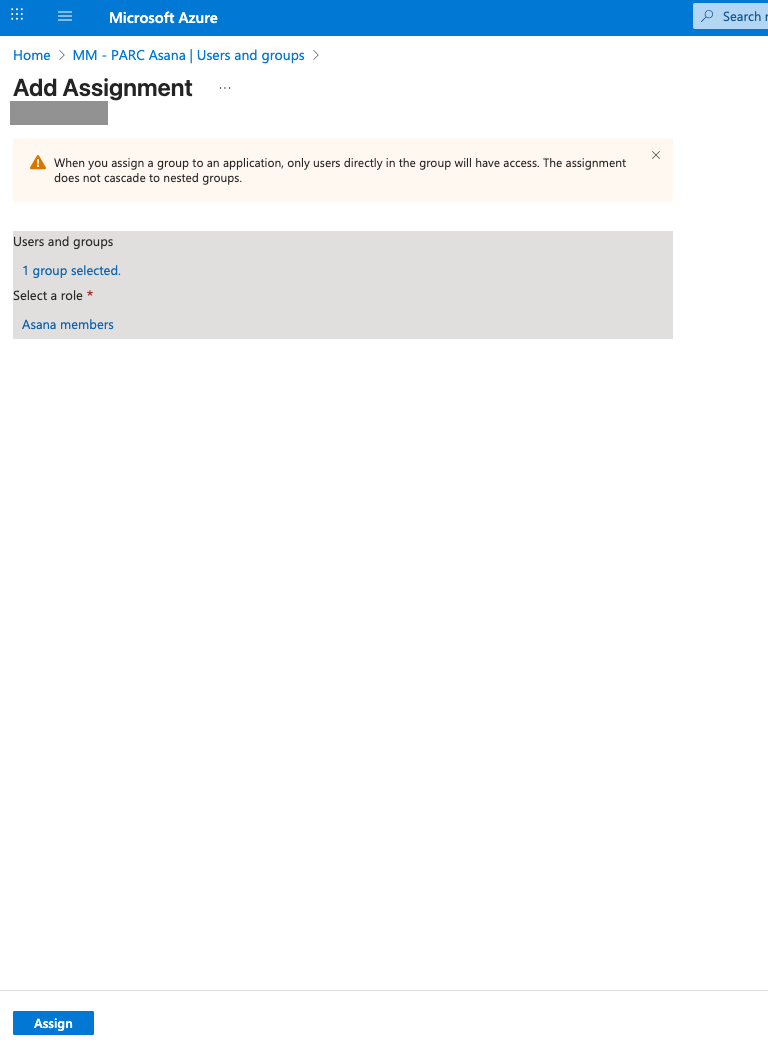

Click on Add user/group and associate each group to their corresponding role:

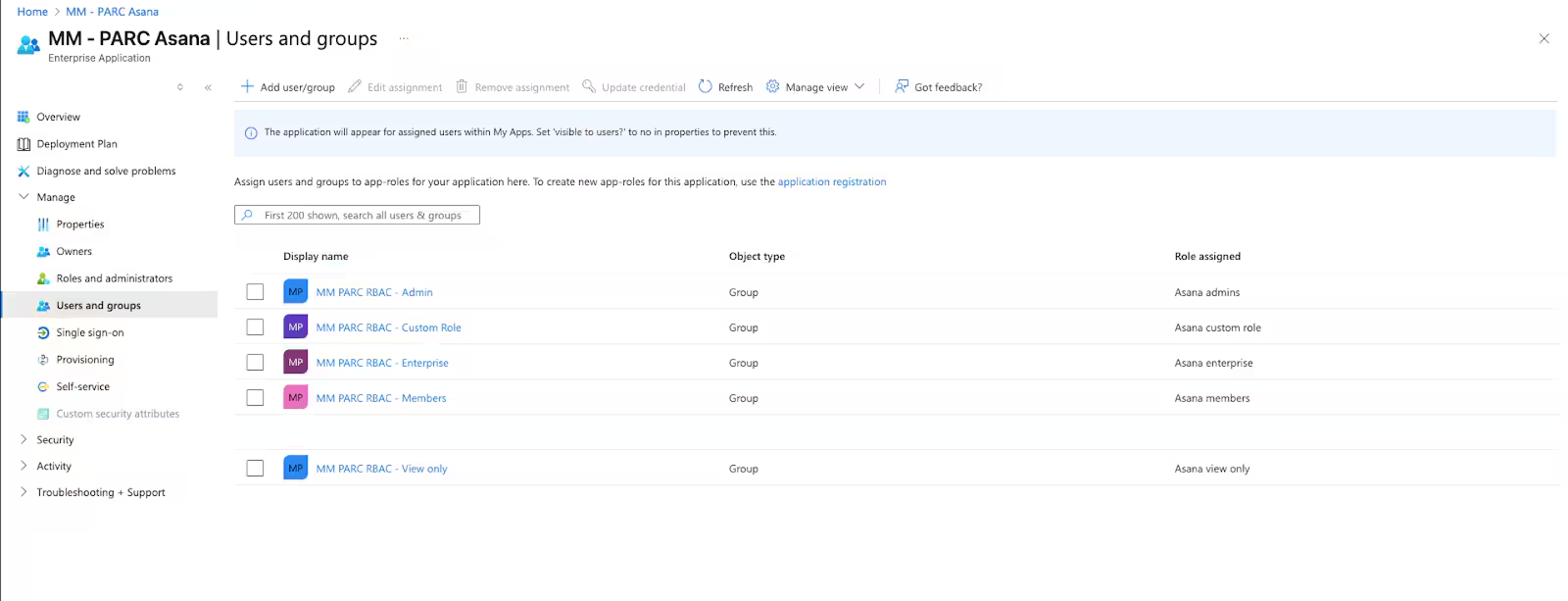

The result will look like this:

Now the setup is complete and you can add the users to their corresponding groups to assign roles. When the next provisioning cycle runs, this configuration will assign the corresponding role to the users (alternatively, you can provision on demand) and you will see this reflected in Asana.

Note iconNote

If you are provisioning users for the first time, and are looking to assign both license and role through Entra ID groups, please do this sequentially - provision users into one of license or role groups first, and then once the user is successfully provisioned, then you can assign the other license or role group to the user. If not, Entra will only assign one attribute and does not read the other as an ‘update’ to the user.
