Available on Asana Advanced, Enterprise, and Enterprise+ tier. Visit our pricing page for more information.

Asana Goals’ strategy map is a powerful visualization tool that provides a holistic view of how goals and work are connected in one place.  With goals strategy map, you can easily identify connections between different initiatives and make informed decisions about resource allocation and priorities.

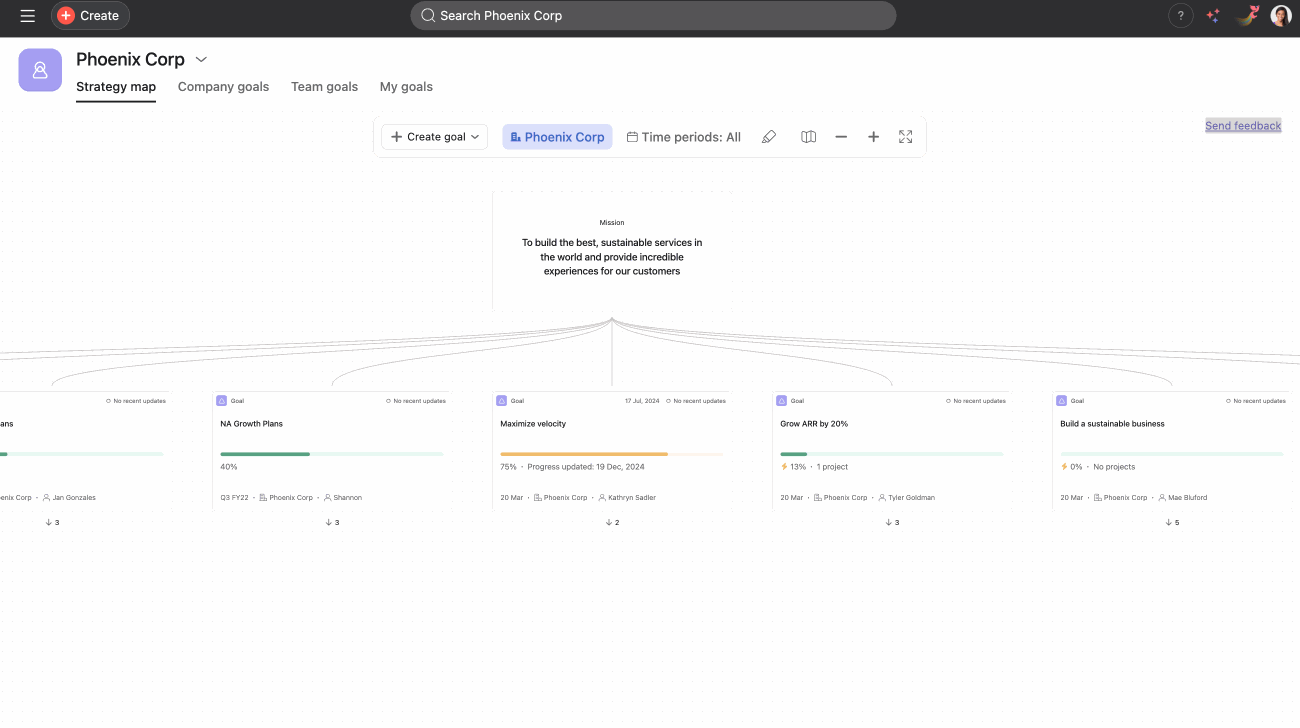

Value of strategy map

Accessing goals strategy map

To access the strategy map, navigate to the sidebar, click Goals, then click the Strategy map tab.

Accessing goals strategy map

Actions in strategy map

From the strategy map tab, you can:

  1. Add a new goal
  2. Choose to filter goals by Company or Team
  3. Select a Time period
  4. Highlight work
  5. Open a mini map
  6. Zoom in or out
  7. Fit the map to view

Expanding and collapsing elements

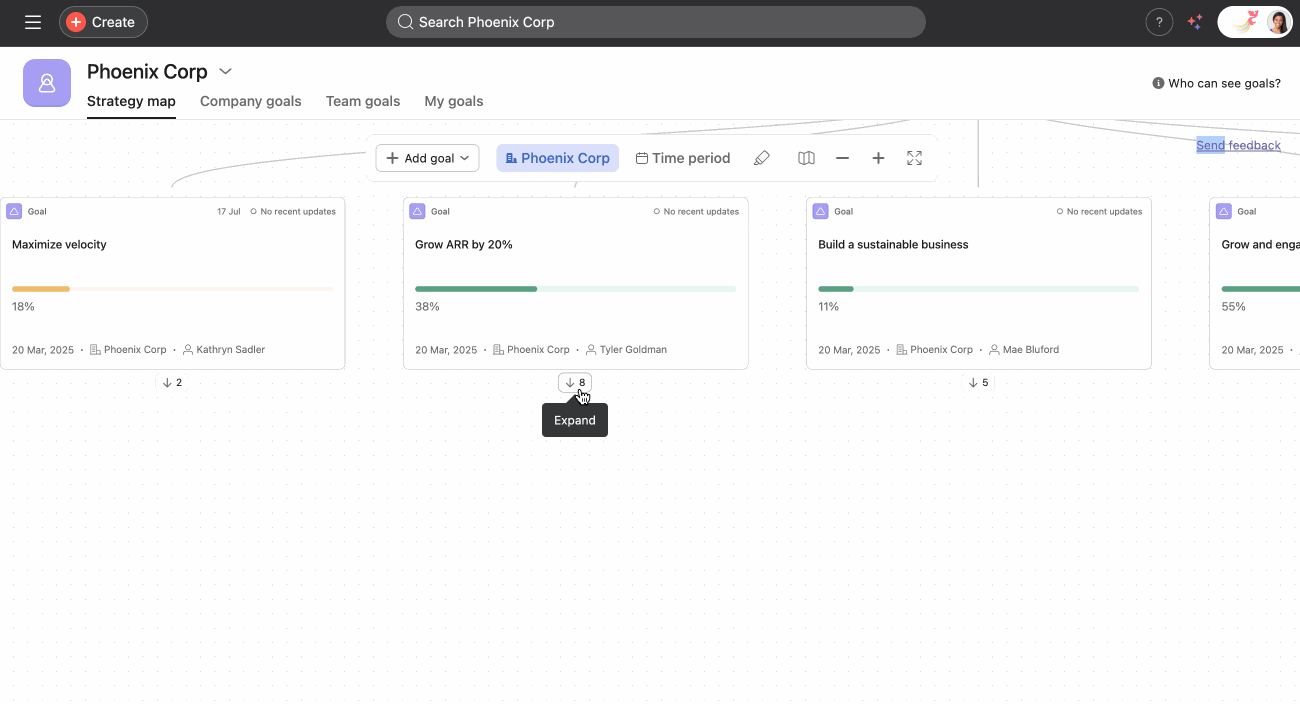

Below the elements in your strategy map, you’ll see an arrow. This arrow appears when pieces of work contribute to this goal. For example, other goals, portfolios, and projects support the “Grow ARR by 20%” goal.

Click the arrow to expand or collapse these elements. The number next to each arrow represents the number of pieces of work supporting the goal.

Arrows in goals strategy map

Viewing card details

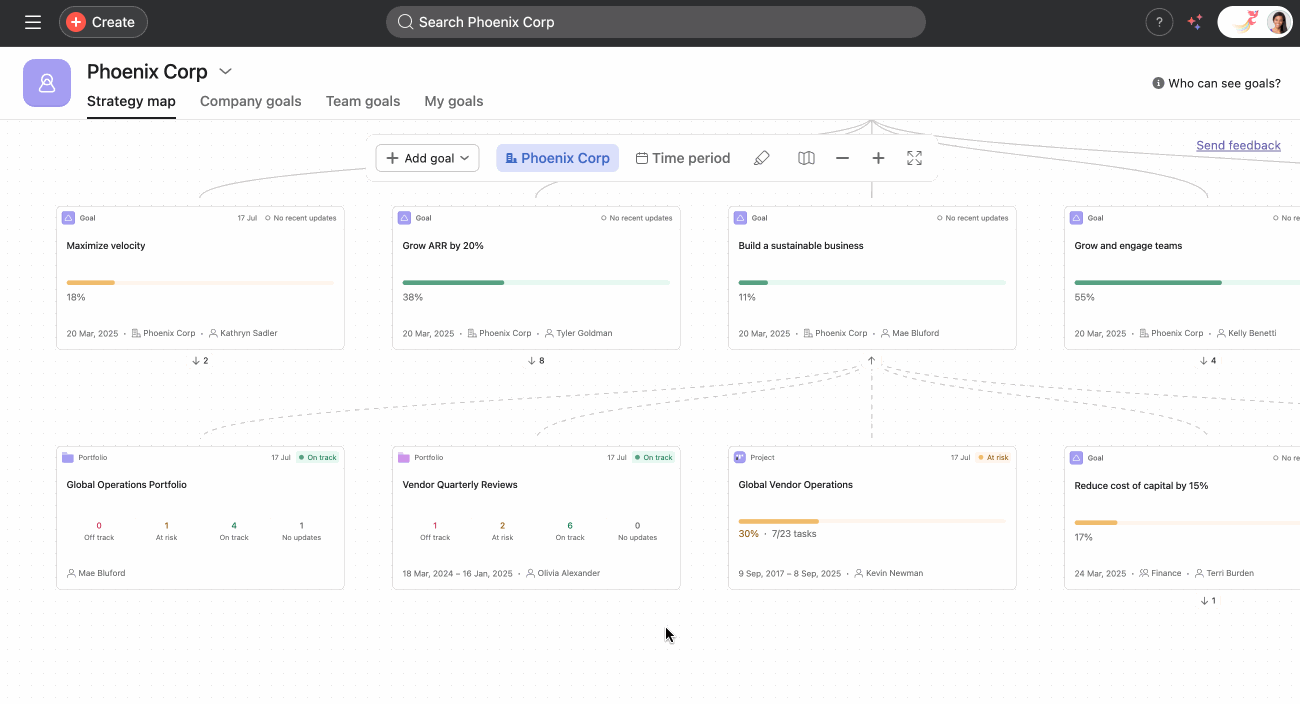

When you click on the cards, a side pane will open, displaying the details of this piece of work.

Card details

Automatic progress rollups

The progress of goals can be measured using the automatic or manual method. The automatic method allows you to calculate progress from three sources automatically: sub-goals, projects, or tasks. When the progress of the source changes, so does the parent’s progress–automatically.

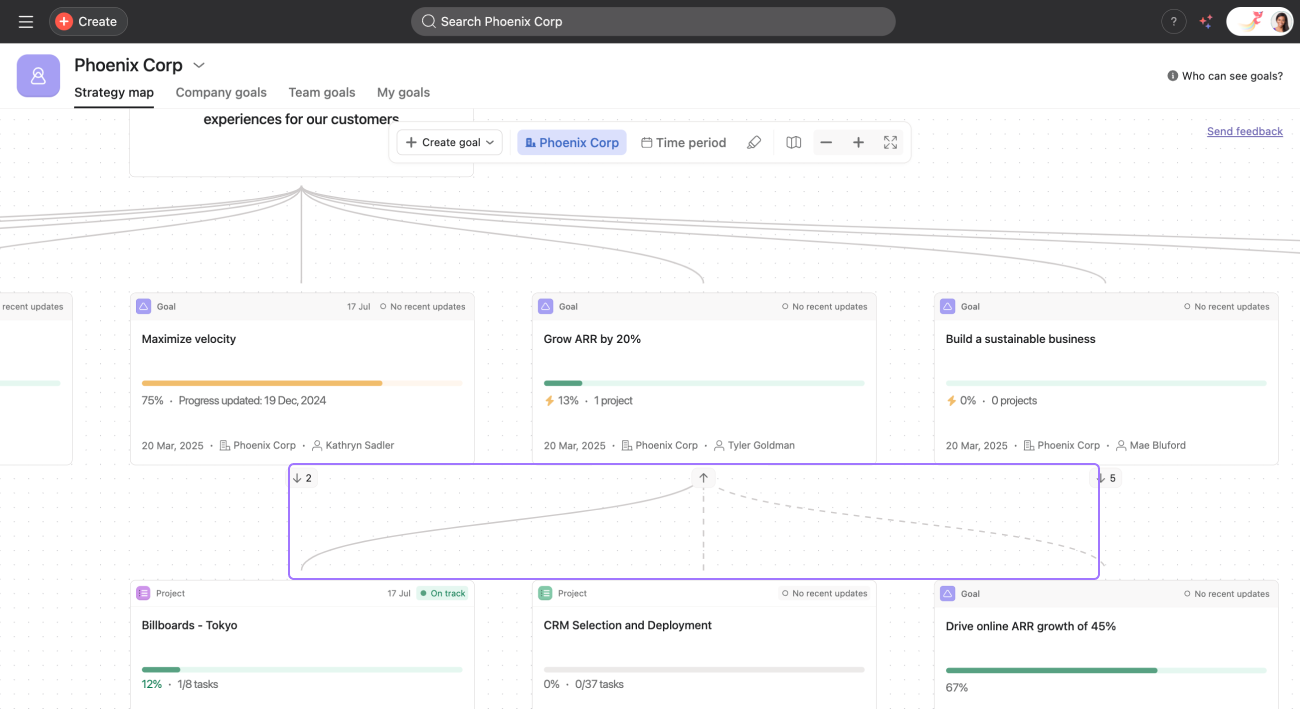

The solid lines in the goals strategy map indicate that the object contributes to the goal using the automatic method.

Lines

Minimap

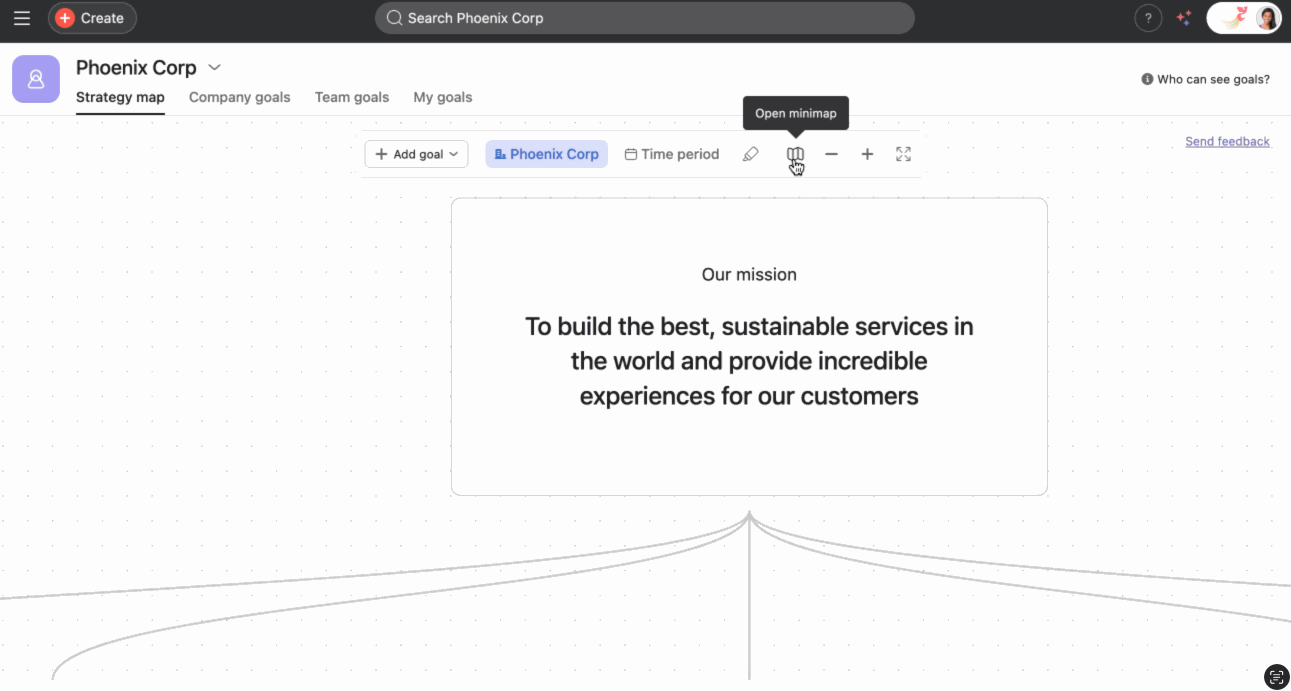

The minimap allows you to move within your goals strategy map and see exactly where on the map you are.

Minimap

Click the Minimap icon at the top of your goals strategy map to open the minimap. Click the icon again to close the map.

Note iconNote

Browse forum insights on setting and managing goals in Asana.
